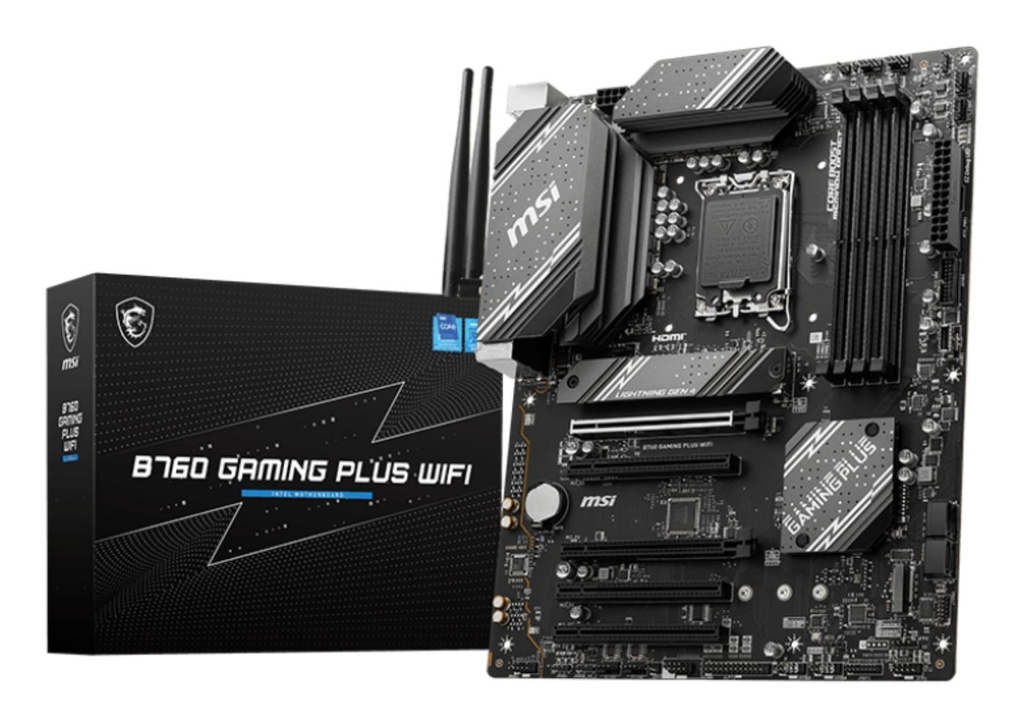

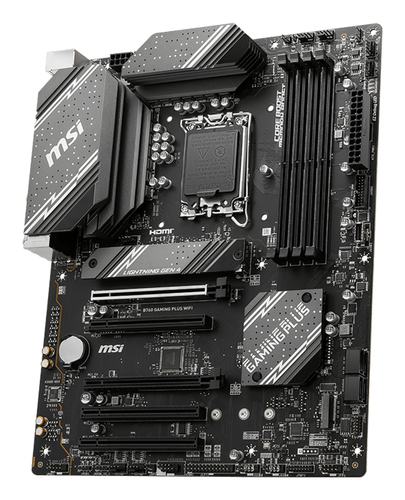

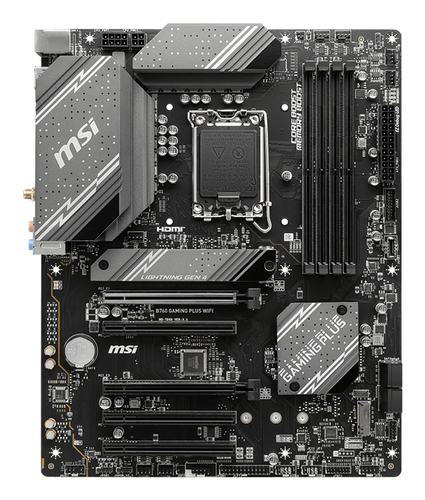

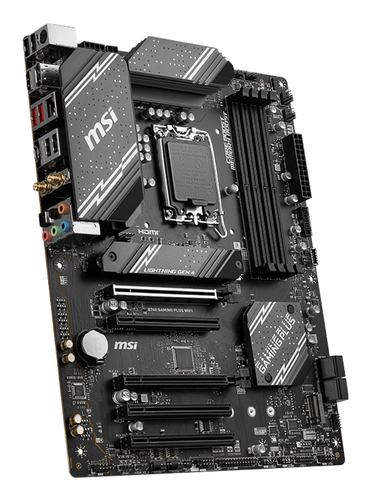

B760 GAMING PLUS WIFI
MS-7D98\B760 GAMING PLUS WIFI\601-7D98-080 31\801-7D98-008\STD B760 GAMING PLUS WIFI B760 LGA1700 4DDR5 5PCI-EX16 3M.2 4SATA3.0 3USB3.2
Il contenuto verrà condiviso in tutte le pagine prodotto.
B760 GAMING PLUS WIFI
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold
- PC ATX Intel B760 Realtek ALC897 7.1 canali
- DDR5-SDRAM 4 DIMM RAM massima supportata: 192 GB
- M.2, SATA Supporto RAID
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Processore
| Produttore processore | Intel |
| Presa per processore | LGA 1700 |
| Processori compatibili | Intel® Celeron®, Intel® Pentium® Gold |
Memoria
| Tipi di memoria supportati | DDR5-SDRAM |
| Numero di slot di memoria | 4 |
| tipo di slot di memoria | DIMM |
| Canali di memoria | Dual-channel |
| Compatibilità ECC | Non-ECC |
| RAM massima supportata | 192 |
Controller di archiviazione
| Interfacce dell'unità di archiviazione supportate | M.2, SATA |
| Supporto RAID | Sì |
| Livelli RAID | 0, 1, 5, 10 |
Grafica
| Scheda grafica integrata | No |
I/O interni
| Connettori USB 2.0 | 4 |
| Connettori USB 3.2 Gen 1 (3.1 Gen 1) | 3 |
| Numero di connettori SATA III | 4 |
| Connettore uscita S/PDIF | Sì |
| Connettore TPM | Sì |
Pannello posteriore porte I/O
| Quantità porte USB 2.0 | 4 |
| Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A | 2 |
| Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo C | 1 |
| Quantità porte Ethernet LAN (RJ-45) | 1 |
| Quantità porte HDMI | 1 |
| Versione HDMI | 2.1 |
| Quantità DisplayPorts | 1 |
| versione DisplayPort | 1.4 |
| Porta uscita S/PDIF | Sì |
Collegamento in rete
| Collegamento ethernet LAN | Sì |
| Tipo di interfaccia Ethernet | 2.5 Gigabit Ethernet |
| Controller LAN | Dragon RTL8125BG |
| Wi-Fi | Sì |
| Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Sì |
| Versione Bluetooth | 5.3 |
Caratteristiche
| Chipset scheda madre | Intel B760 |
| Chip audio | Realtek ALC897 |
| Sistema audio | 7.1 |
| Colore del prodotto | Nero |
| Componente per | PC |
| Fattore di forma scheda madre | ATX |
| Famiglia di chipset per scheda madre | Intel |
| Sistema operativo Windows supportato | Windows 10 x64, Windows 11 x64 |
Slot espansione
| x1 slot PCI Express | 3 |
| Slot PCI Express x1 (Gen 3.x) | 3 |
| PCI Express x16 slots | 2 |
| Slot PCI Express x16 (Gen 4.x) | 2 |
| Numero di slot di M.2 (M) | 2 |
Dimensioni e peso
| Larghezza | 243,8 |
| Profondità | 304,8 |
